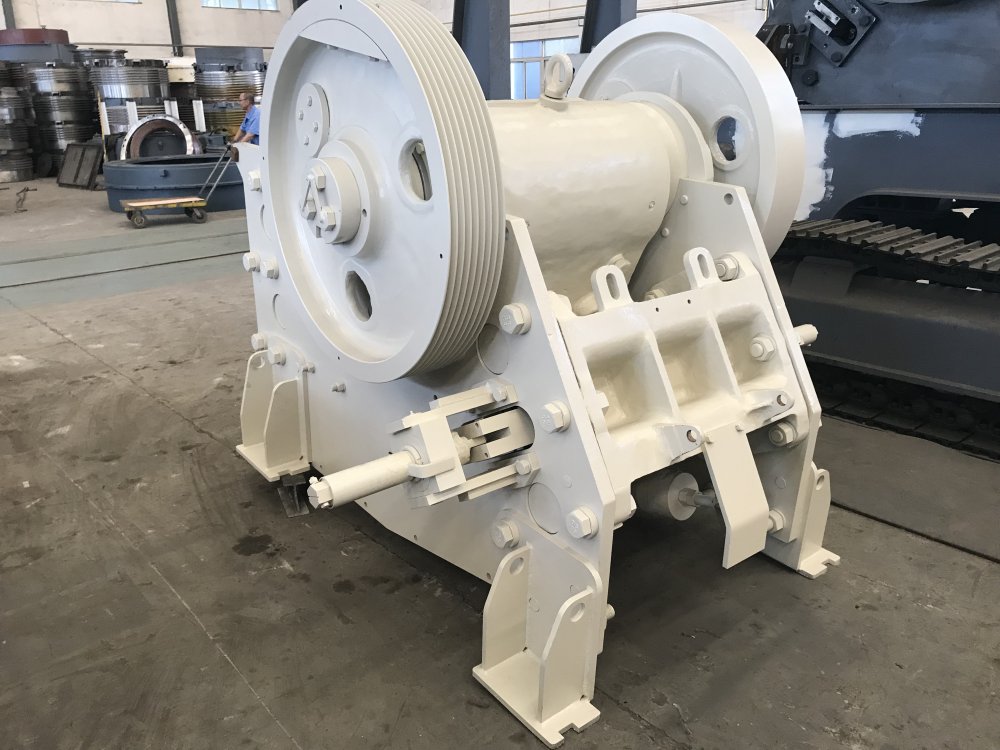

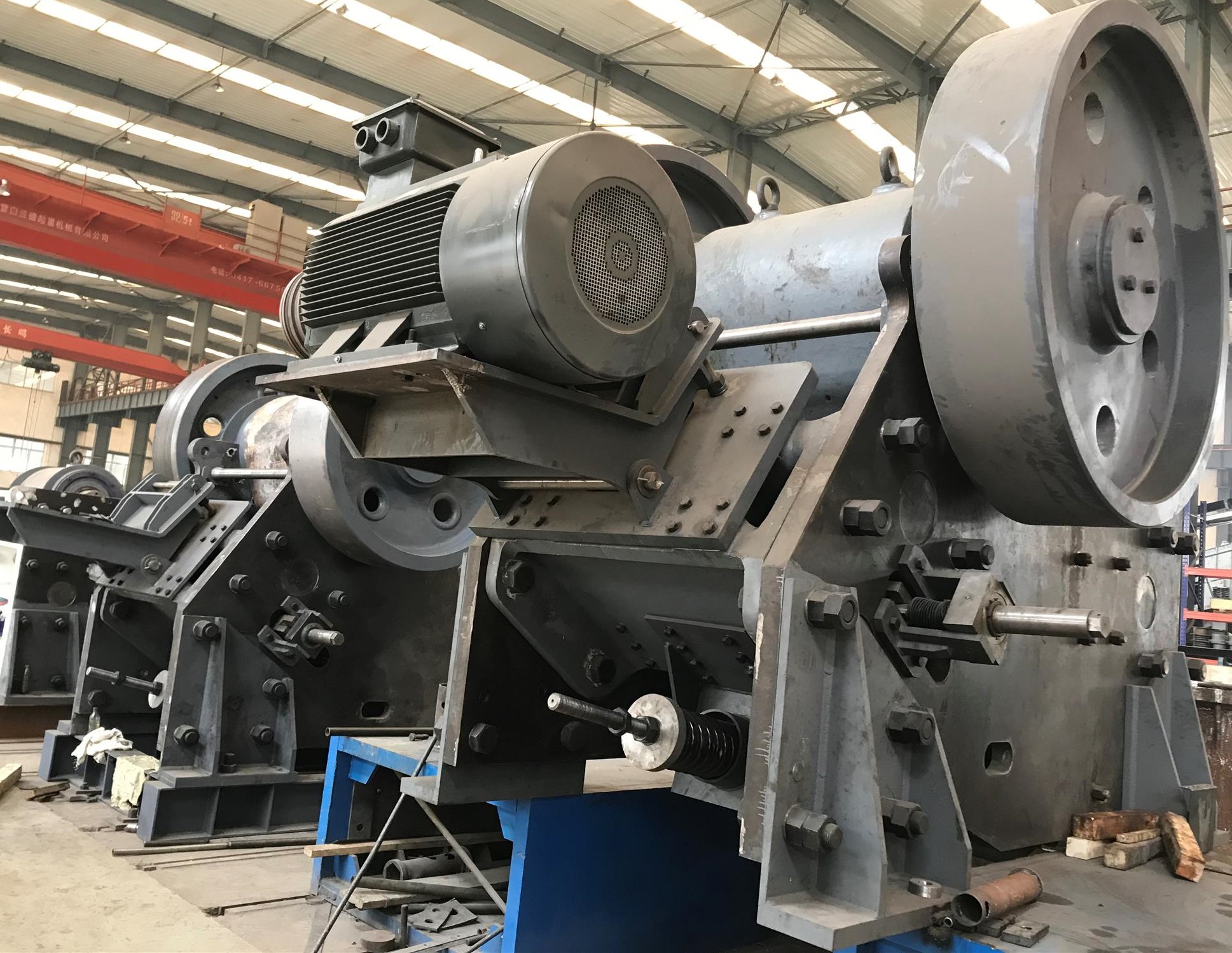

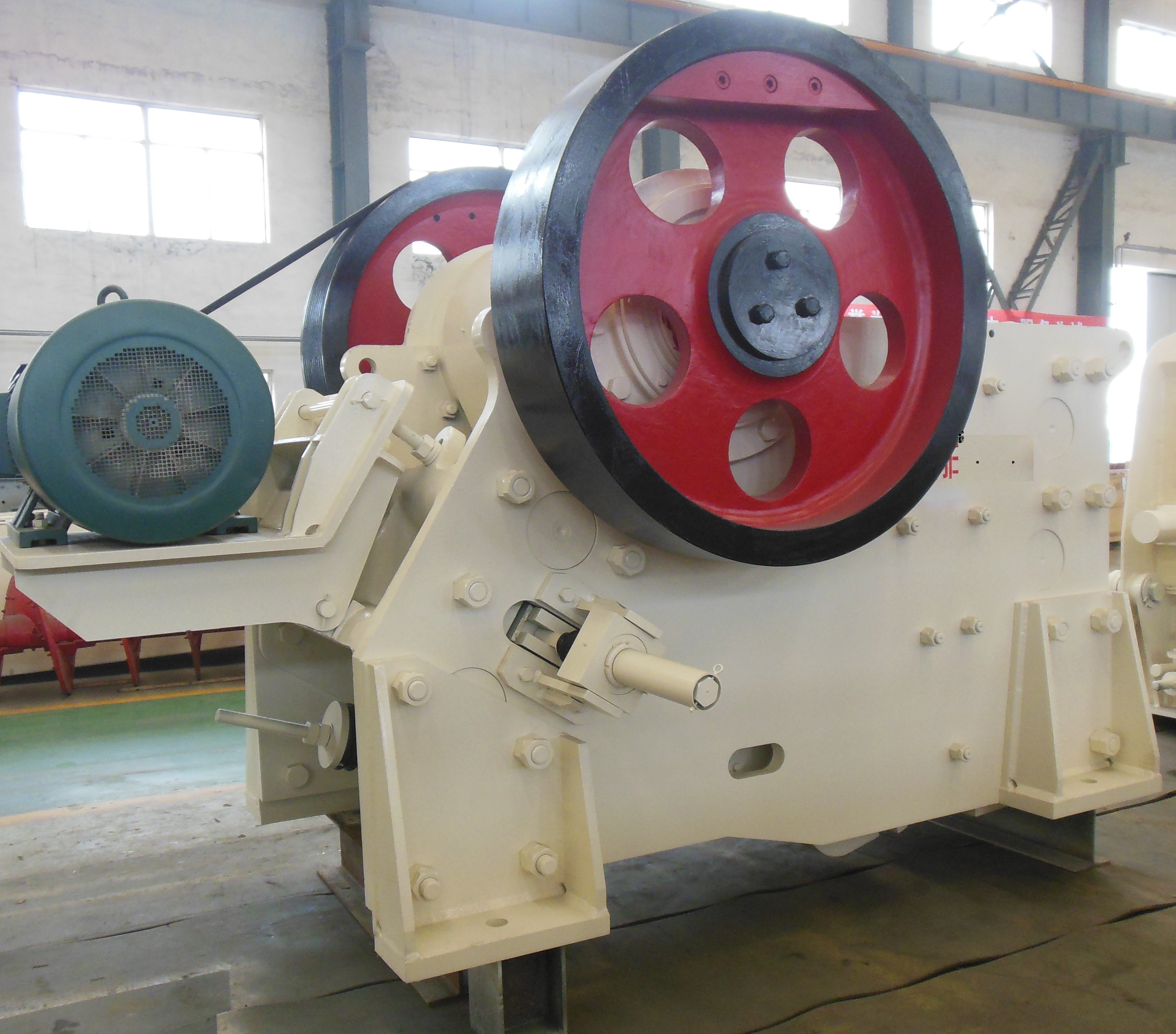

C-Series™ Jaw Crushers & Parts
C-Series™ jaw crushers from Big Rock Equipment are designed with maintenance and simplicity in mind. Models are available from the C80 through the C200 and all parts are directly interchangeable with OEM parts. Contact us to order parts for Big Rock Equipment crushers and OEM crushers.
These crushers are the new generation overhead eccentric single toggle jaw crushers. They have proven themselves as robust crushers with higher production, higher reduction rate, and more economical than their predecessors.
Capacities & Specs
| Model | Max Capacity | Feed Opening | Max Feed Size | Closed Side Setting | Power | Speed |
|---|---|---|---|---|---|---|
| C80 |
370 TPH |
510 x 800 mm |
410 mm |
40 - 175 mm |
75 KW |
350 RPM |
| C96 |
430 TPH |
580 x 930 mm |
460 mm |
60 - 175 mm |
90 KW |
330 RPM |
| C106 |
560 TPH |
700 x 1060 mm |
560 mm |
70 - 200 mm |
110 KW |
280 RPM |
| C116 |
580 TPH |
760 x 1150 mm |
610 mm |
70 - 200 mm |
132 KW |
260 RPM |
| C120 |
595 TPH |
870 x 1200 mm |
700 mm |
70 - 175 mm |
160 KW |
230 RPM |
| C130 |
915 TPH |
1000 x 1300 mm |
800 mm |
100 - 250 mm |
185 KW |
220 RPM |
| C150 |
970 TPH |
1200 x 1400 mm |
960 mm |
125 - 250 mm |
200 KW |
220 RPM |
| C160 |
1260 TPH |
1200 x 1600 mm |
960 mm |
150 - 300 mm |
250 KW |
220 RPM |
| C200 |
1575 TPH |
1500 x 2000 mm |
1200 mm |
175 - 300 mm |
400 KW |
200 RPM |
C-series™ is a mark of Metso Minerals Industries, Inc.® or its affiliates. Big Rock Equipment is not an authorized repair facility nor does it have an affiliation with Metso Minerals Industries, Inc.® The terms are used for identification purposes only and are not intended to indicate affiliation with or approval by Metso Minerals Industries, Inc.® All parts are manufactured by, for and warranted by Big Rock Equipment. Parts are not manufactured by, purchased from or warranted by the original equipment manufacturer.
