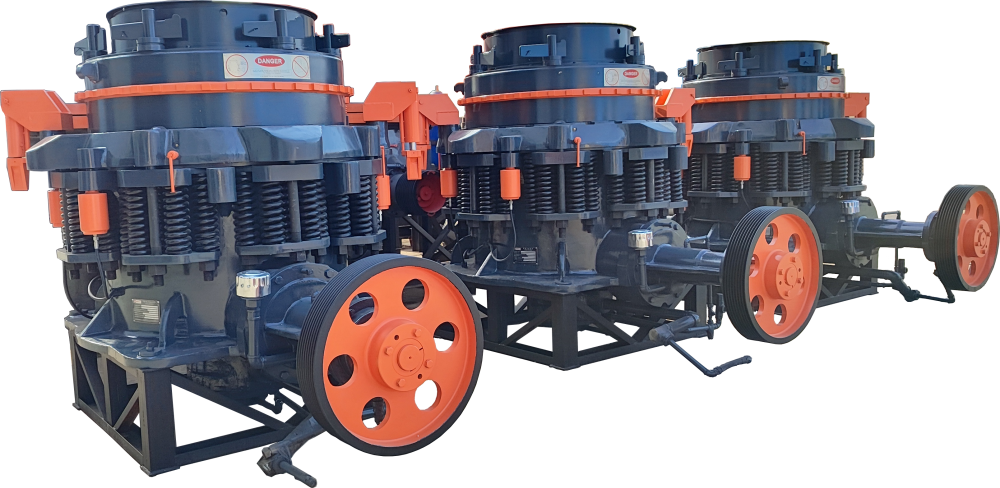

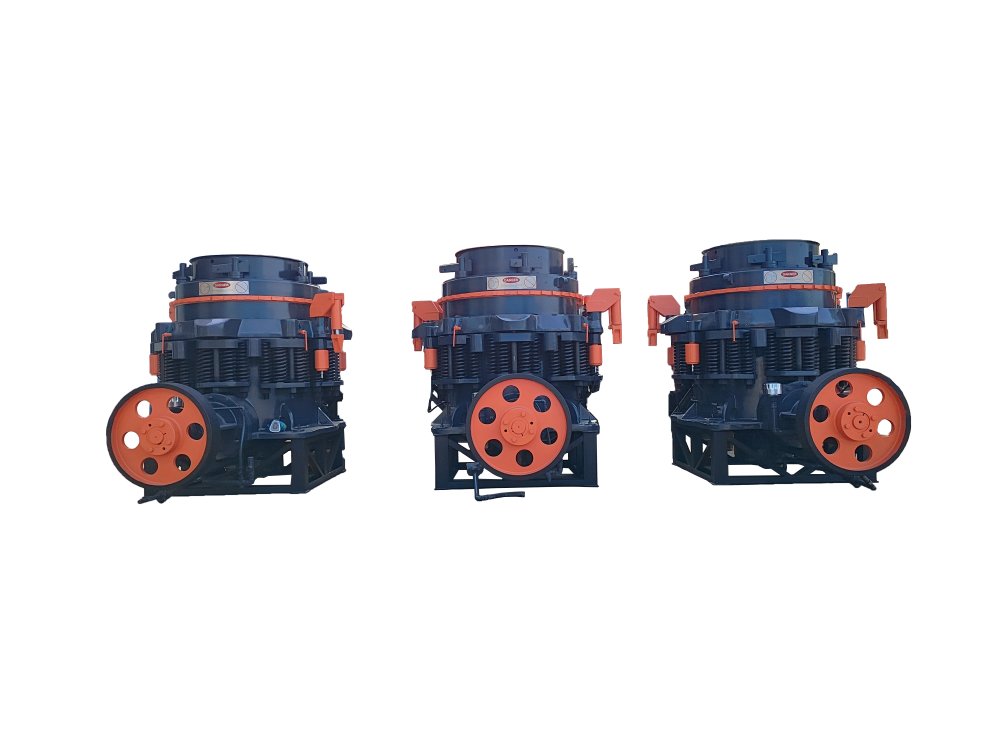

Symons™ Cone Crushers
Symons™ cone crushers from Big Rock Equipment are designed with maintenance and simplicity in mind. We supply all Standard and Shorthead crushers from 2 ft. up to 7 ft. Extra Heavy Duty. Our crushers are provided complete, ready to install, with options of CSA approved electrics, lubrication systems, and hydraulic clamping / tramp release systems.
The Symons™ Cone Crusher has proven itself in the mining and aggregate industry for over 60 years. It is suitable for hard and mid-hard rocks and ores such as iron, copper, limestone, quartz, granite, etc. Contact us to order parts for Big Rock Equipment crushers and OEM Symons™ crushers you have in operation.
Capacities & Specs
| Size | Liner | Min Discharge | CSS Opening | OSS Opening | Capacity |
|---|---|---|---|---|---|
| 3 FT (900 mm) |
Fine | 9 mm | 83 mm | 102 mm | 45 - 91 TPH |
| Coarse | 13 mm | 159 mm | 175 mm | 59 - 163 TPH | |
| Extra Coarse | 25 mm | 163 mm | 178 mm | 128 - 196 TPH | |
| 4 FT (1200 mm) |
Fine | 9 mm | 127 mm | 131 mm | 63 - 167 TPH |
| Medium | 13 mm | 156 mm | 156 mm | 99 - 198 TPH | |
| Coarse | 19 mm | 178 mm | 191 mm | 140 - 306 TPH | |
| Extra Coarse | 25 mm | 231 mm | 250 mm | 189 - 315 TPH | |
| 4-1/4 FT (1295 mm) |
Fine | 13 mm | 109 mm | 137 mm | 109 - 181 TPH |
| Medium | 16 mm | 188 mm | 210 mm | 132 - 253 TPH | |
| Coarse | 19 mm | 216 mm | 241 mm | 172 - 378 TPH | |
| Extra Coarse | 25 mm | 238 mm | 259 mm | 236 - 455 TPH | |
| 5-1/2 FT (1675 mm) |
Fine | 16 mm | 188 mm | 209 mm | 181 - 327 TPH |
| Medium | 22 mm | 213 mm | 241 mm | 258 - 437 TPH | |
| Coarse | 25 mm | 241 mm | 269 mm | 354 - 610 TPH | |
| Extra Coarse | 38 mm | 331 mm | 368 mm | 538 - 743 TPH | |
| 7 FT | Coarse | 31 mm | 334 mm | 369 mm | 844 - 1257 TPH |
| Extra Coarse | 38 mm | 425 mm | 460 mm | 880 - 1361 TPH |
Symons™ is a mark of Metso Minerals Industries, Inc.® or its affiliates. Big Rock Equipment is not an authorized repair facility nor does it have an affiliation with Metso Minerals Industries, Inc.® The terms are used for identification purposes only and are not intended to indicate affiliation with or approval by Metso Minerals Industries, Inc.® All parts are manufactured by, for and warranted by Big Rock Equipment. Parts are not manufactured by, purchased from or warranted by the original equipment manufacturer.
